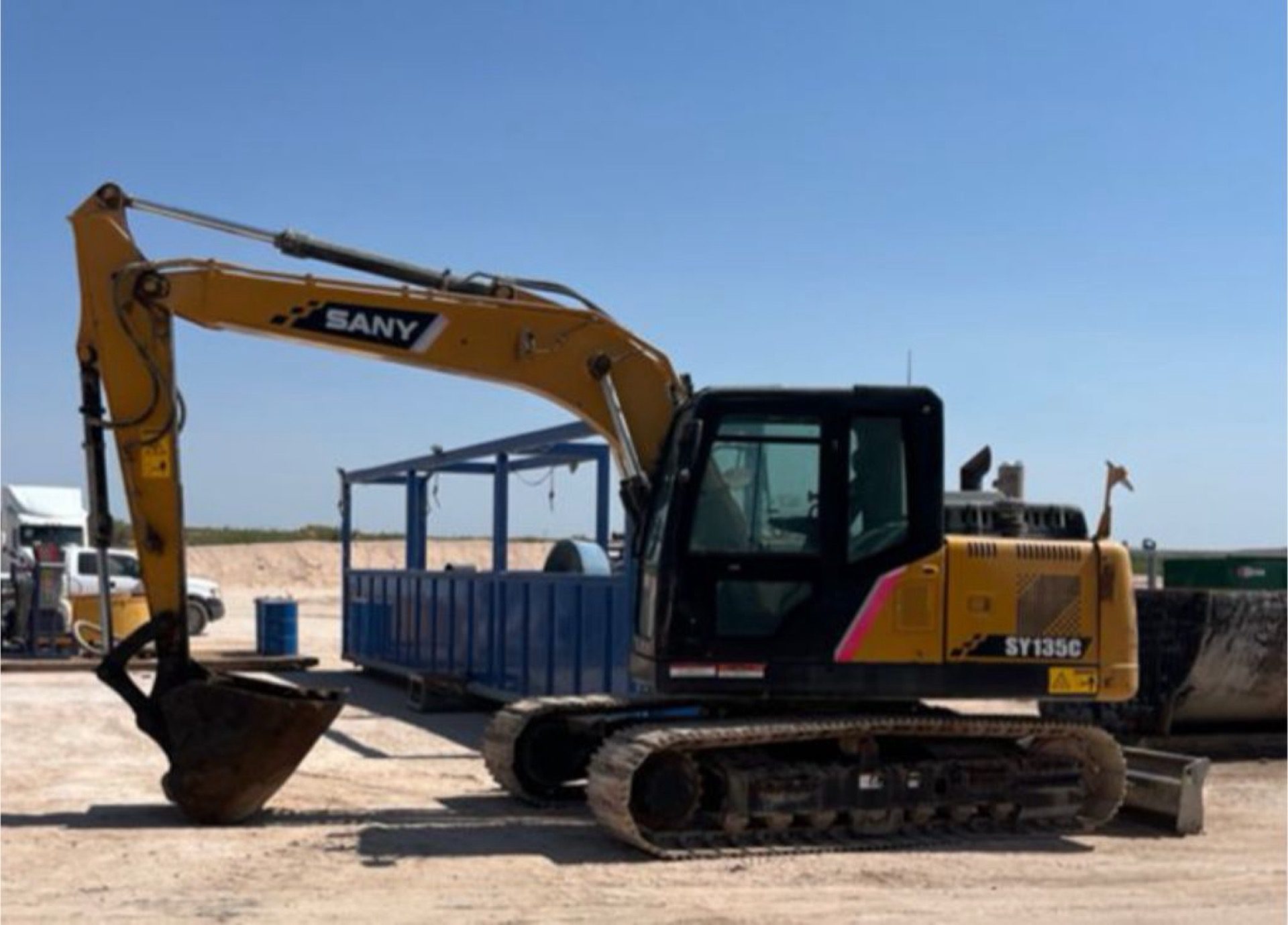

SANY SY135C
The SANY SY135C is a versatile compact excavator designed for medium-duty projects, making it ideal for oilfield and construction tasks in West Texas. Weighing approximately 14,870 kg (32,783 lbs) and powered by a 103.9 hp Isuzu engine, it offers a digging depth of 5,500 mm and a bucket capacity of 0.6 m³. Its robust hydraulic system and optimized flow enhance fuel efficiency and operational precision, while its compact size and durable design allow it to navigate confined job sites and tough terrain with ease.
Description
- Operating Weight: 14,870 kg (32,783 lbs)
- Engine Power: 77.5 kW (103.9 hp)
- Dig Depth: 5,500 mm (18' 1"
- )Bucket Capacity: 0.6 m³
- Dimensions:
- Transport Length: 7,700 mm (25' 3")
- Transport Width: 2,600 mm (8' 6")
- Transport Height: 2,815 mm (9' 3")
- Tail Swing Radius: 2,205 mm (7' 3")
- Track Width: 600 mm (24")
- Engine Model: Isuzu 4JJ1X
- Hydraulic System:
- Main Pump: Axial piston, variable displacement
- Operating Flow: Up to 190.2 gal/min (720 L/min)
- Operating Pressure: 4,975 psi (34.3 MPa)
- Power Boost Pressure: 5,410 psi (37.3 MPa)
- Features:
- Optimized positive flow hydraulics for improved operating efficiency by up to 5% and fuel efficiency by up to 10%
- Designed for tough conditions with robust powertrain and hydraulic components
